MPK Series: Mini Pickers

Jekko MPK Series

The Jekko MPK series is part of the compact crane range supplied by Foster Cranes. These machines are designed for sites where space is limited and mobility is essential. The MPK line consists of small pick and carry cranes that are ideal for indoor work, tight access areas and projects where precise positioning and safe load handling are required.

What the MPK Series Offers

The MPK series is made up of electric, battery powered minipickers that can lift and travel with a load. When fitted with the appropriate manipulator, they can also handle glass, panels or other smooth materials.Their compact size allows them to pass through standard doors and move easily along narrow routes inside buildings or on restricted sites.

The combination of pick and carry capability, compact footprint and clean electric power makes these cranes well suited for refurbishment projects, maintenance work, glazing installation and similar tasks where space and access are limited.

MPK Models

Typical models in the MPK series include:

  • MPK06.2
    A compact machine with a lifting capacity of around six hundred kilograms. Suitable for tight access lifting and small handling tasks.
  • MPK10.2
    A larger option offering increased capacity and strength. Often used for glazing, panel installation or medium duty lifting in restricted areas.
  • MPK20.2
    The most powerful in the MPK range, suited to heavier loads and more demanding installation work.

All models can be fitted with hooks or vacuum based manipulators depending on the task.

Key Benefits of MPK Cranes

  • Compact size for indoor and restricted access environments
  • Ability to lift and travel with a load
  • Suitable for glass and panel handling when fitted with a manipulator
  • Quiet and low emission operation
  • Precise, safe and easy to control

What Foster Cranes Provides

Foster Cranes can help you identify the MPK model that suits your site conditions, lifting requirements and access limitations. All machines supplied are checked, prepared and supported by our service and technical teams.

If you would like to learn more about the MPK series or discuss current availability, contact the Foster Cranes sales team.

The series of self-propelled electric cranes in Pick&Carry mode

MPK minipickers: three powers in one. Small, electric, Pick&Carry

When the work space is too tight, the MPK series enters the arena.

These fully battery-powered and radio-remote controlled minipickers are designed to operate in warehouses or difficult-to-access places where handling of heavy loads through doors is required.

And they do it in Pick&Carry mode: the crane doesn’t need to be stabilized while easily moving the lifted load around.

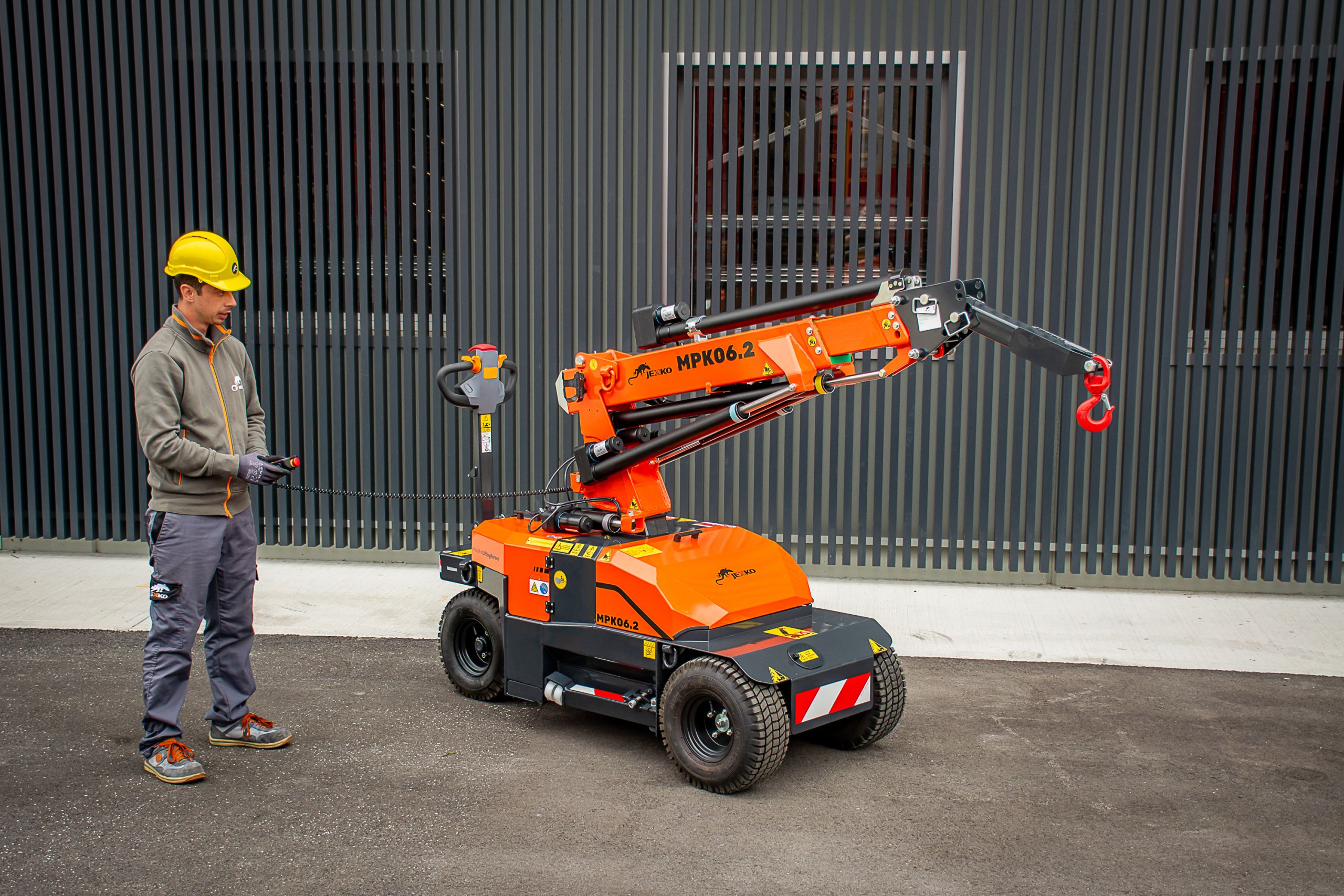

MPK06 Minipicker

The only minipicker that can be used with a manipulator with suction caps or in hook mode in compliance with EN13000 regulation.

Up to three movements at the same time without losing power.

Max load: 600 KILOGRAM
Max height: 4 METER
Max radius: 2.1 METER
Dimensions: 765 x 1360 x 1850 MILLIMETER
Power: Batteries

MPK10 Minipicker

MPK10 can be equipped with a manipulator with suction caps or in hook mode.

Max load: 990 KILOGRAM
Max height: 4.8 METER
Max radius: 2.3 METER
Dimensions: 955 x 1500 x 2280 MILLIMETER
Power: Batteries

MPK20R Minipicker

Unique in the electric minipicker category, the column of the MPK20R can rotate +/- 6° and allows the installation of 6 and 9 ton glass manipulators.

Max load: 2000 KILOGRAM
Max height: 7.4 METER
Max radius: 4.9 METER
Dimensions: 1200 x 1765 x 2620 MILLIMETER
Power: Diesel + Electric

MPK50 Minipicker

Pure innovation. Totally radio remote-controlled, battery powered, 5 ton pick & carry, patented boom rotation system and frontal stabilizer bar make this crane one of a kind.

Max load: 5000 KILOGRAM
Max height: 9.2 METER
Max radius: 6.1 METER
Dimensions: 1190 x 1740 x 3010 MILLIMETER
Power: Batteries
